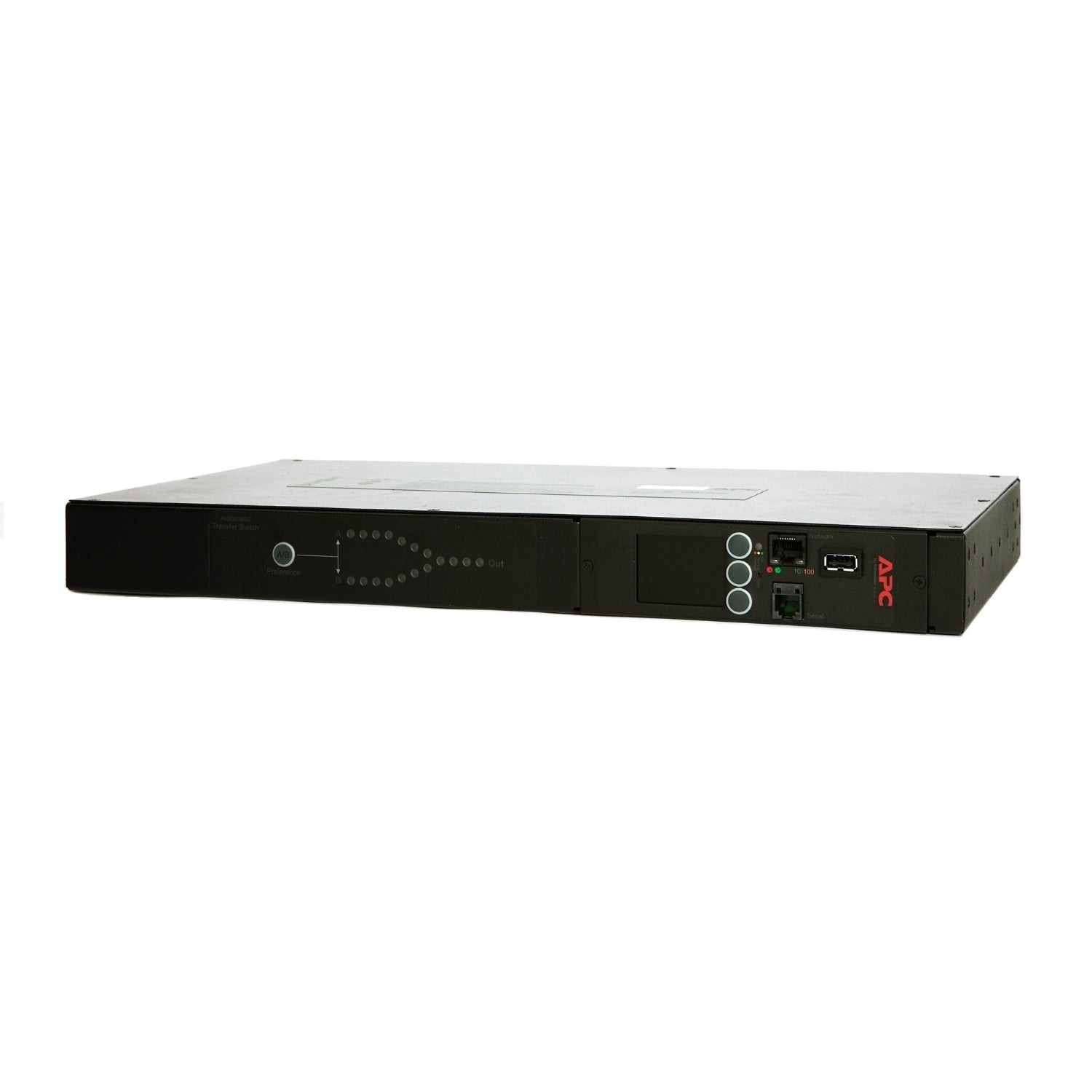

Rack ATS, 230V, 16A, C20 in, (8) C13 (1) C19 out AP4423A
3,191.23
Minimized downtime disruption with Field-replaceable NMC
Monitor temperature and humidity efficiently
Dual input power cords to enhance uptime for critcal loads
Connect and manage up to 32 Rack ATSs from one IP address
Seamless switching with transfer time 10ms
Shipping calculated at checkout.
Specification
Overview
Lead Time: Usually in Stock
Main
Product Type: Automatic Transfer Switch
Main Input Voltage: 230 V AC, 1 Phase
Main Output Voltage: 230 V AC, 1 Phase
Input Connection Type: IEC 60320 C20, 16 A, 2P + E
Rack Units: 1U
Provided Equipment: Mounting hardware, Rack mounting brackets
Physical
Colour: Black
Height: 44 mm
Width: 432 mm
Depth: 236 mm
Net Weight: 3.74 kg
Mounting Mode: Rack-mounted
Mounting Position: Horizontal
Mounting Location: Front
Input
Network Frequency: 50 / 60 Hz
Rated Current: 16 A
Permissible Voltage: 207 – 253 V
Max Line Current: 20 A
Input Current Limit: 20 A
Load Capacity: 3700 VA
Output
Total Outlets: 9

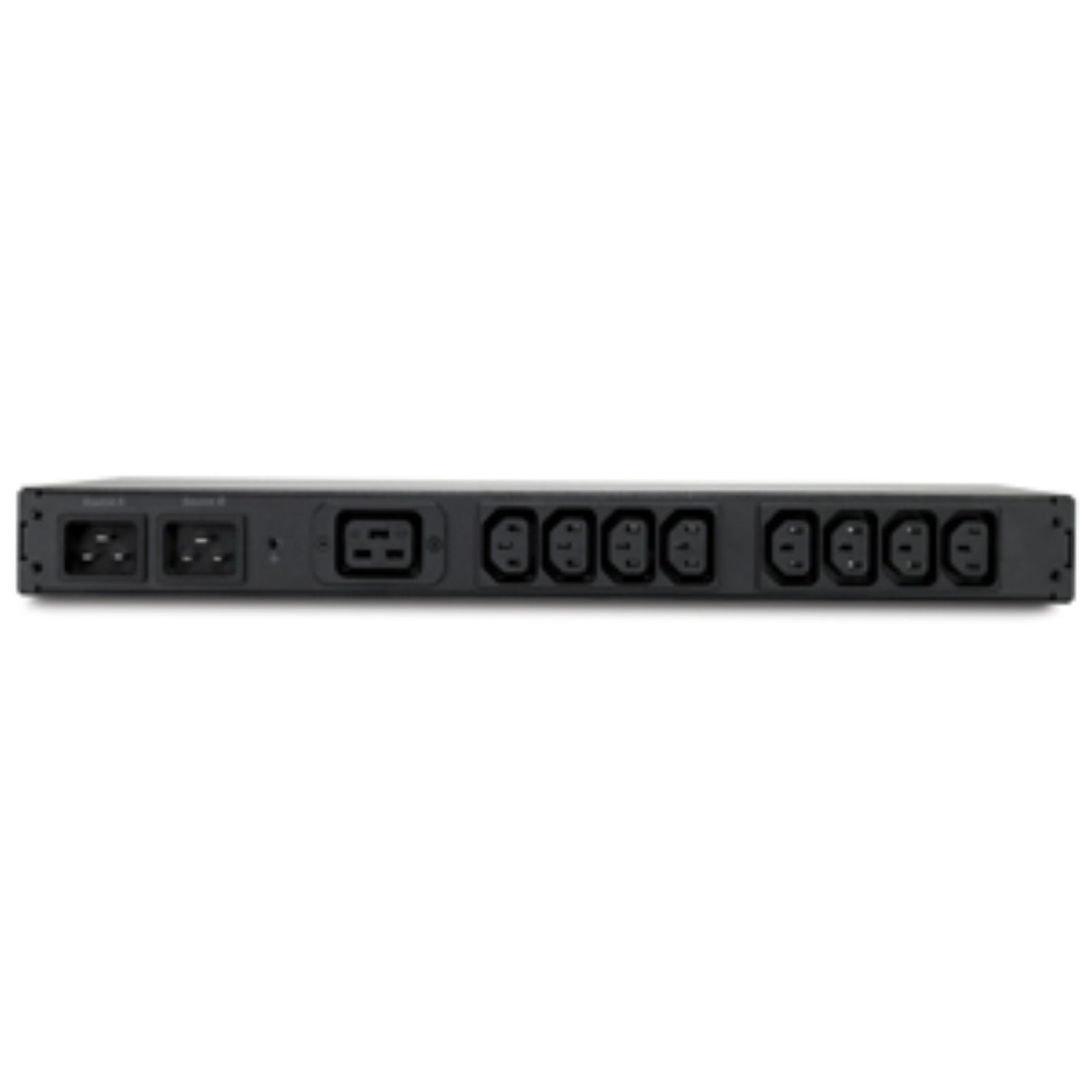

Outlet Configuration: 8 × IEC 60320 C13 (10 A), 1 × IEC 60320 C19 (16 A)
Protection Type: Without circuit breaker
Power Cable Length: 2.44 m
Compliance
Certifications: cUL Listed, CE, UL Listed
Standards: EN 55022 Class A, FCC Part 15 Class A
Environmental
Operating Temperature: -5 to 45 °C
Operating Humidity: 5 – 95 %
Operating Altitude: 0 – 10,000 ft
Storage Temperature: -25 to 65 °C
Storage Humidity: 5 – 95 %
Storage Altitude: 0 – 15,240 m
Packaging
Package Type: PCE
Units per Package: 1
Package Dimensions: 12 × 35.5 × 60 cm
Package Weight: 5.492 kg
Warranty
24 Months
Rack ATS, 230V, 16A, C20 in, (8) C13 (1) C19 out
Brand:Â APC
Product Type:Â Automatic transfer switch
Wiring Type:Â Single Phase
Topology:Â Line interactive
Input: IEC 60320 C20
Output: 8 IEC 60320 C13Â 1 IEC 60320 C19
Warranty:Â 2 years repair or replace
Dimensions: 11.40x 60.00x 35.60 cm
Weight:Â 3.74 kg
Part Number: AP4423A
