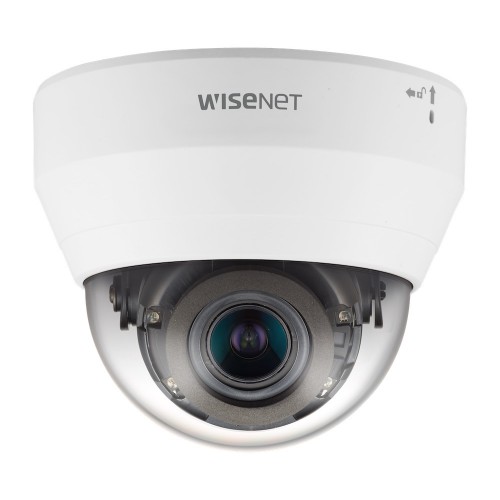

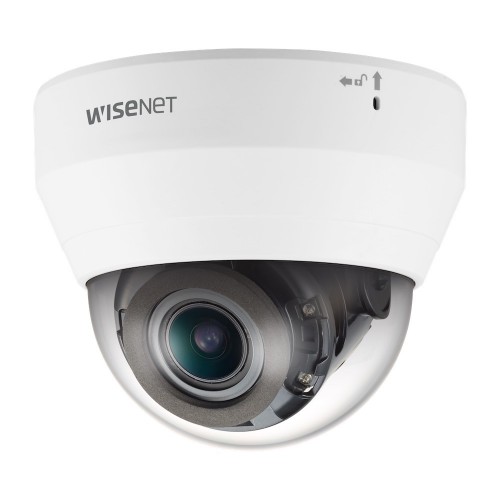

QND-6072R, 2MP IR Network Dome Camera
526.92
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 20m, PoE/12VDC
Shipping calculated at checkout.
Specification
Video
Imaging Device: 1/2.8″ CMOS
Resolution: 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max Frame Rate: H.265/H.264 up to 30fps / 25fps
MJPEG: Max 15fps (@2MP Max 4fps)
Min Illumination: Color 0.03 Lux, B/W 0 Lux (IR LED On)
Video Output: CVBS 1.0 Vp-p / 75Ω
Lens
Focal Length: 3.2 ~ 10mm (3.1x Manual Varifocal)
Aperture: F1.6 (Wide) ~ F2.9 (Tele)
Field of View: H: 109°~33°, V: 58°~18°, D: 132°~38°
Min Object Distance: 0.5m (1.64ft)
Focus Control: Manual
Lens Type: DC Auto Iris
Pan / Tilt / Rotate
Pan: 0° ~ 350°
Tilt: 0° ~ 67°
Rotate: 0° ~ 355°
Image Enhancement
Day & Night: Auto (ICR)
Backlight Compensation: BLC / WDR / SSDR
Wide Dynamic Range: 120 dB
Noise Reduction: SSNR
Detection & Analytics
Motion Detection: 4 Polygonal Zones
Privacy Masking: 6 Rectangular Zones
Analytics: Motion, Tampering, Defocus, Intrusion, Enter/Exit, Line Crossing
Camera Controls
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
Shutter Speed: 1/5 ~ 1/12,000 sec
Video Rotation: Flip, Mirror, Hallway View (90° / 270°)
LDC: Supported
Alarm & Events
Alarm I/O: 1 Input / 1 Output
Alarm Triggers: Analytics, Network Disconnect, Alarm Input
Event Actions: FTP, Email Notification, SD/NAS Recording, Alarm Output
Audio & IR
Audio Input: Built-in Microphone
Audio Compression: G.711 u-law / G.726
IR Type: IR LED (850nm)
IR Distance: Up to 20m
Network
Ethernet: RJ-45 (10/100BASE-T)
Compression: H.265 / H.264 / MJPEG
Streaming: Unicast (6 Users) / Multicast
Protocols: IPv4, IPv6, RTSP, HTTPS, FTP, SNMP, QoS
API: ONVIF S/G/T, SUNAPI
Security
Authentication: Digest, 802.1X
Secure Communication: HTTPS, SRTP, WSS
Access Control: IP-based Control
Firmware Protection: Encrypted Firmware
General
Edge Storage: Micro SD/SDHC/SDXC (Up to 128GB)
Memory: 512MB RAM / 256MB Flash
Web Languages: Multi-language Support
QND-6072R, 2MP IR Network Dome Camera
- Brand: WISENET
- Model: QND-6072R
- Weight: 320.00g
- Dimensions: 119.80mm x 119.80mm x 98.80mm
- SKU: QND-6072R
- HS CODE: 8525809190
- MPN: QND-6072R
