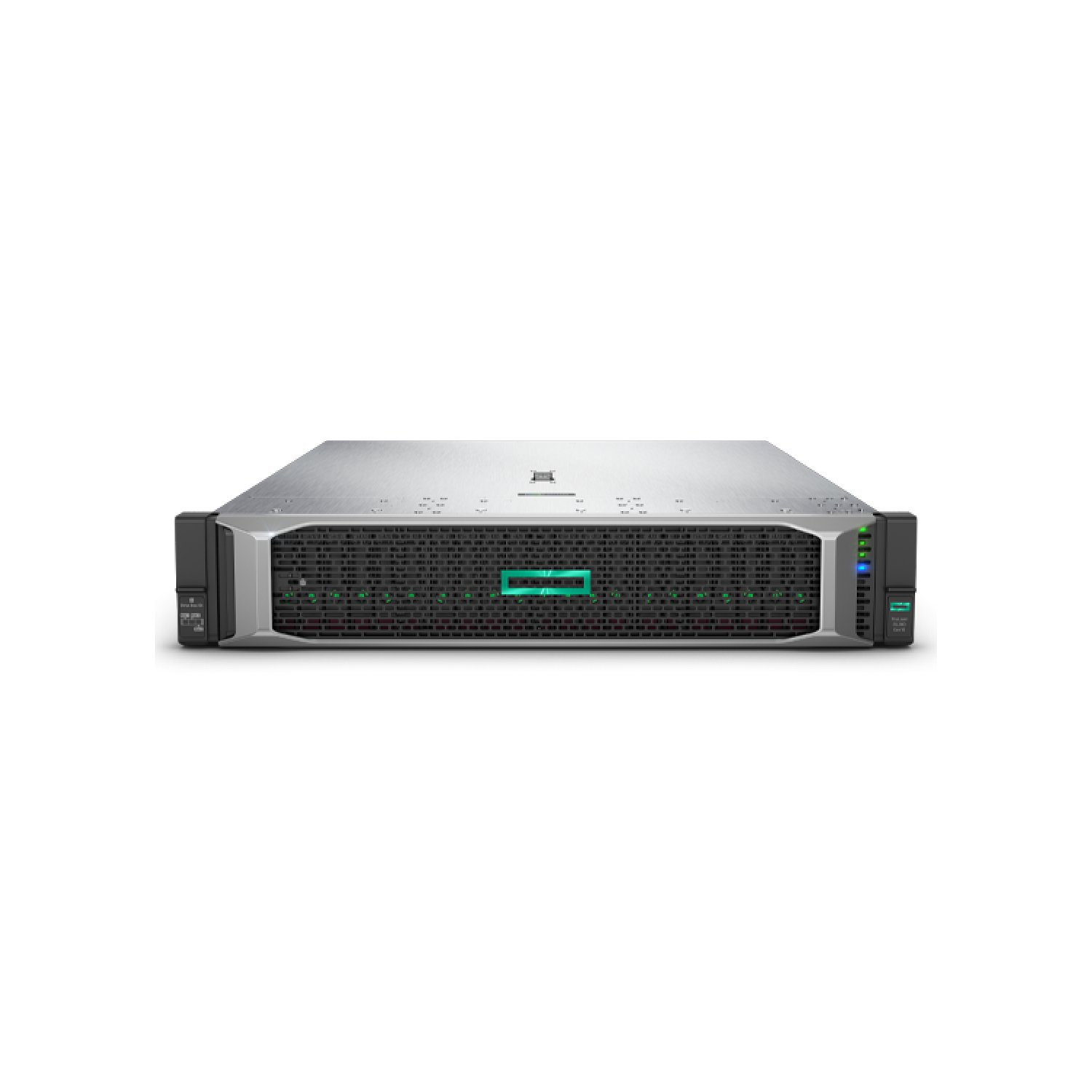

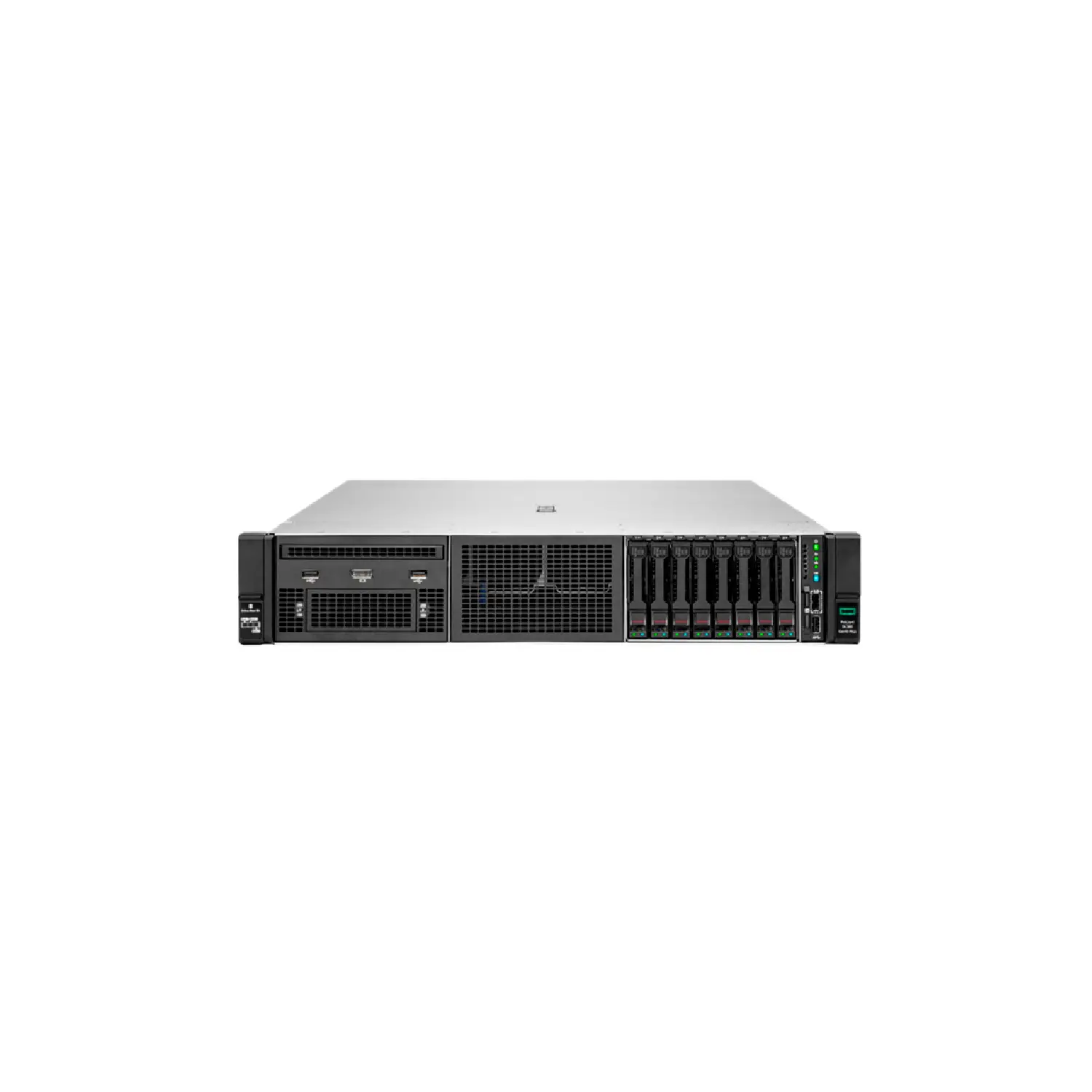

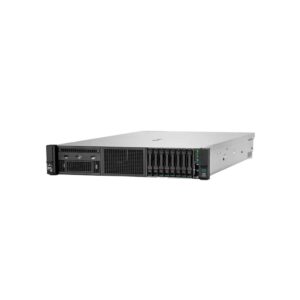

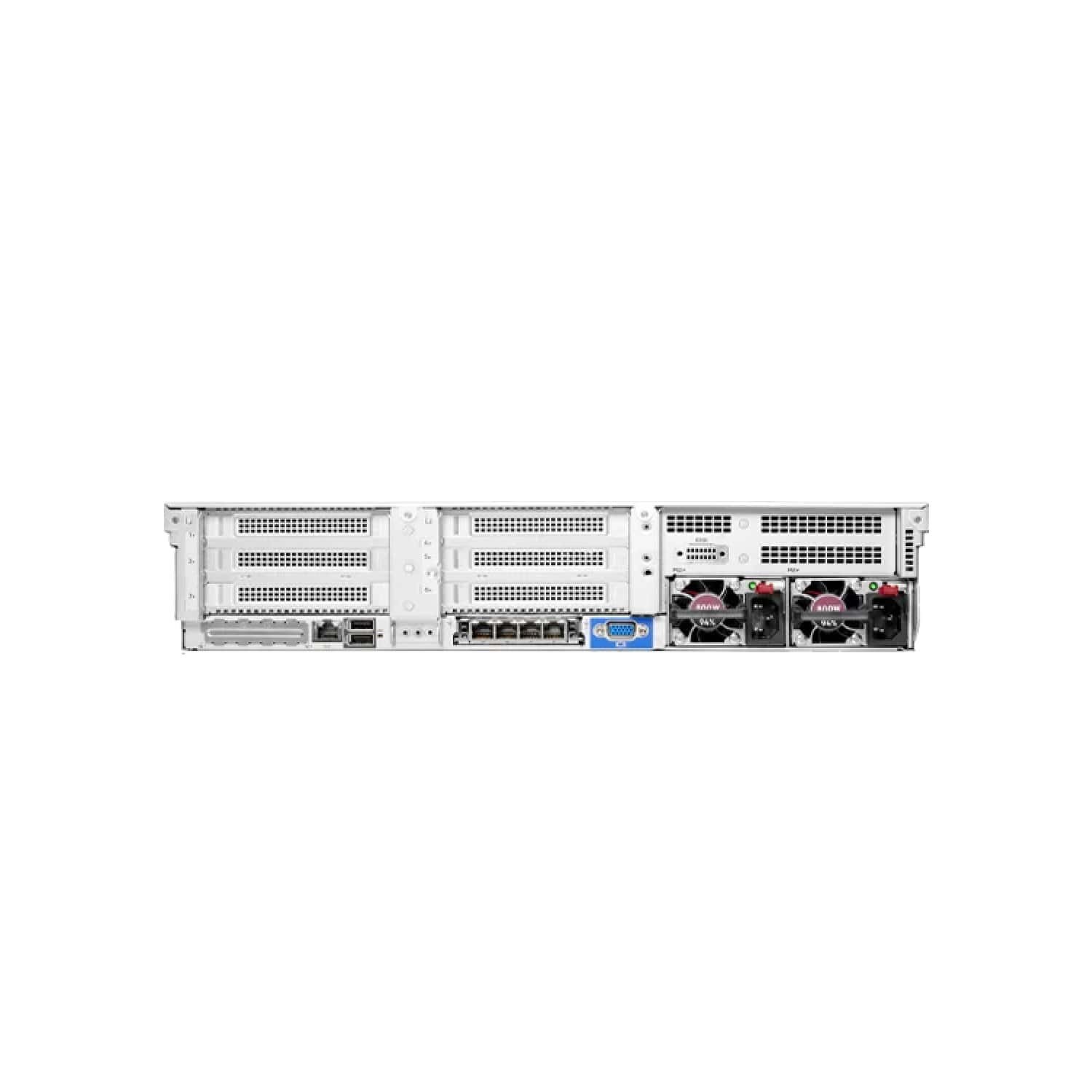

HPE ProLiant DL380 G10 Plus Rack Server SFF | Intel Xeon Silver 4314 | 32 GB | 800 W | 3 Year | P43358-B21

HPE ProLiant DL380 G10 Plus Rack Server SFF, Intel Xeon Silver 4314, 32 GB, 800 W, 3 Year, P43358-B21

• Processor: Intel® Xeon® Silver 4314 (2.4GHz/3.40GHz, 11 MB L3 Cache, 16 Core / 32 Threads) 135W
• Memory: HPE 32GB RDIMM Dual Rank 3200 MT/s. (24 DIMM Slots)
• Internal storage:  8 SFF SAS/SATA HDD Bays
• Internal HDD: No HDD
• Storage controller: P408i-a/2GB with Smart Storage Battery
• Optical Drive: N/A
• Graphic card: Choice of up to 2 double wide GPGPU’s, or 3 single wide GPGPU’s
• Network interfaces: Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE
• Power supply: (1+0) HPE 800W Flex Slot Platinum hot plug supply
• Form Factor: 2U Rack (8.75 H x 44.54  W x 71 L) – 16.12KG
• Warranty: 3-year Parts, 3-year Labor, 3-year on-site support

1. Processor Support:

• • • The HPE ProLiant DL380 G10 Rack Server, Supports 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor for exceptional performance.
    • Dual-socket configuration, supporting up to 2 processors for scalability and workload optimization.
    • Features Intel UltraPath Interconnect (UPI) for improved inter-CPU communication and faster data processing.

2. Memory Capacity:

• • • Supports up to 3 TB DDR4 SmartMemory across 24 DIMM slots.
    • HPE ProLiant DL380 G10 Rack Server, Memory speeds of up to 2933 MT/s, providing high bandwidth and reliability for data-intensive workloads.
    • HPE Persistent Memory support, combining the speed of memory with storage persistence for improved application performance.

3. Storage Flexibility:

• • • Supports up to 12 LFF (Large Form Factor) or 24 SFF (Small Form Factor) hot-plug drives.
    • HPE ProLiant DL380 G10 Rack Server, Flexible support for SATA, SAS, and NVMe SSDs or HDDs for diverse storage configurations.
    • Up to 20 NVMe drives can be configured for maximum high-speed storage options.

4. RAID Support:

• • • Equipped with HPE Smart Array S100i SR Gen10 controller for software RAID 0, 1, and 5.
    • Optional advanced hardware RAID controllers like the HPE Smart Array P408i-a/Smart Array E208i-a, supporting RAID levels 0, 1, 5, 6, 10, 50, and 60 for superior data protection.

5. Networking:

• • • Comes with 4x1GbE embedded NICs for standard network connectivity.
    • HPE ProLiant DL380 G10 Rack Server, Optional HPE FlexibleLOM or PCIe network adapters support 10GbE, 25GbE, and 100GbE for more advanced network requirements.

6. Expansion Slots:

• • • Offers up to 6 PCIe Gen3 expansion slots, allowing for additional RAID controllers, GPUs, or network interface cards (NICs).
    • Supports a wide range of PCIe cards for flexible expansion options and customization.

7. Power Supply:

• • • Configurable with 500W, 800W, 1600W, and 2000W hot-plug, redundant Platinum/Titanium power supplies.
    • Features HPE Power Discovery Services to optimize power efficiency and provide real-time power usage insights.

8. Remote Management:

• • • HPE ProLiant DL380 G10 Rack Server, Integrated with HPE iLO 5 (Integrated Lights-Out) for advanced server monitoring, management, and troubleshooting.
    • iLO offers features like agentless management, remote control, health monitoring, and automatic firmware updates.
    • HPE InfoSight integration for AI-driven insights, helping optimize performance and predict potential issues.

9. Security Features:

• • • Silicon Root of Trust to protect the system from firmware attacks.
    • Secure boot, automatic recovery, and chassis intrusion detection for enhanced security.
    • Optional Trusted Platform Module (TPM) for hardware-based encryption and data protection.

10. GPU Support:

• • • Supports up to 3 double-wide GPUs or 5 single-wide GPUs, making it suitable for workloads like AI, machine learning, deep learning, and virtual desktop infrastructure (VDI).
    • Excellent for handling high-performance computing (HPC) and graphically demanding workloads.

11. Operating System Support:

• • • Compatible with a wide range of operating systems including Microsoft Windows Server, Linux distributions (RHEL, SUSE, Ubuntu), and VMware ESXi.
    • Perfect for running traditional workloads, virtualization, or cloud-native applications.

12. Energy Efficiency and Cooling:

• • • HPE’s Advanced Thermal Discovery Services for dynamic cooling and energy optimization.
    • Redundant fans with advanced cooling mechanisms to handle high-performance workloads efficiently.

13. Workload Optimization:

• • • Optimized for a variety of workloads including virtualization, data analytics, cloud computing, HPC, and AI.
    • Provides versatile performance for data-intensive applications and enterprise environments.

14. Compact Design:

• • • 2U rack form factor, offering a balance between performance, storage capacity, and expandability while saving space.
    • Ideal for enterprise data centers looking for a powerful yet compact server solution.

15. Warranty and Support:

• • • HPE ProLiant DL380 G10 Rack Server, Comes with a standard 3-year parts, 3-year labor, and 3-year on-site support warranty.
    • Optional HPE Pointnext services for tailored support, deployment assistance, and ongoing management.
