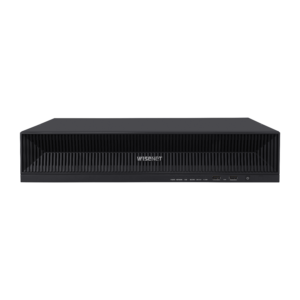

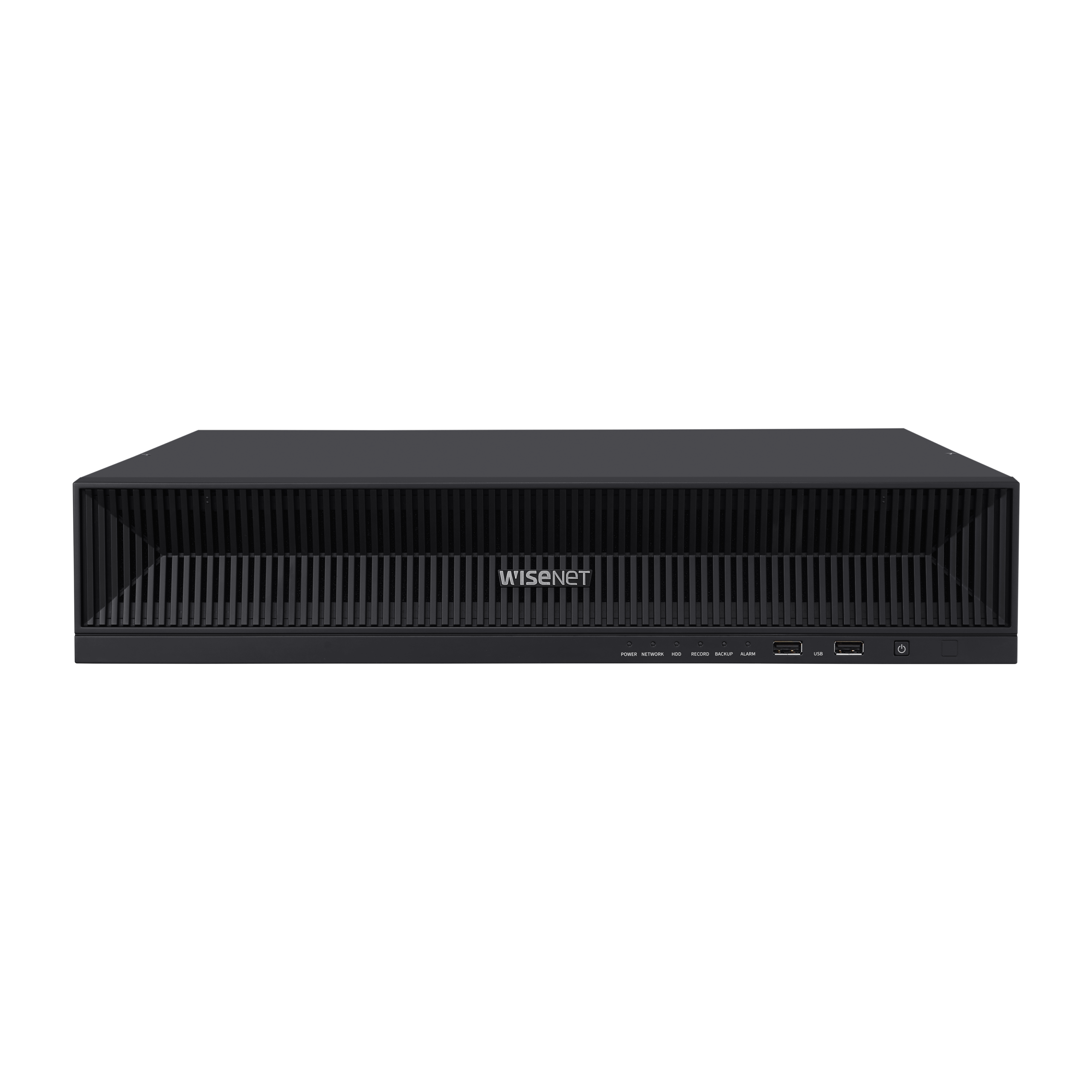

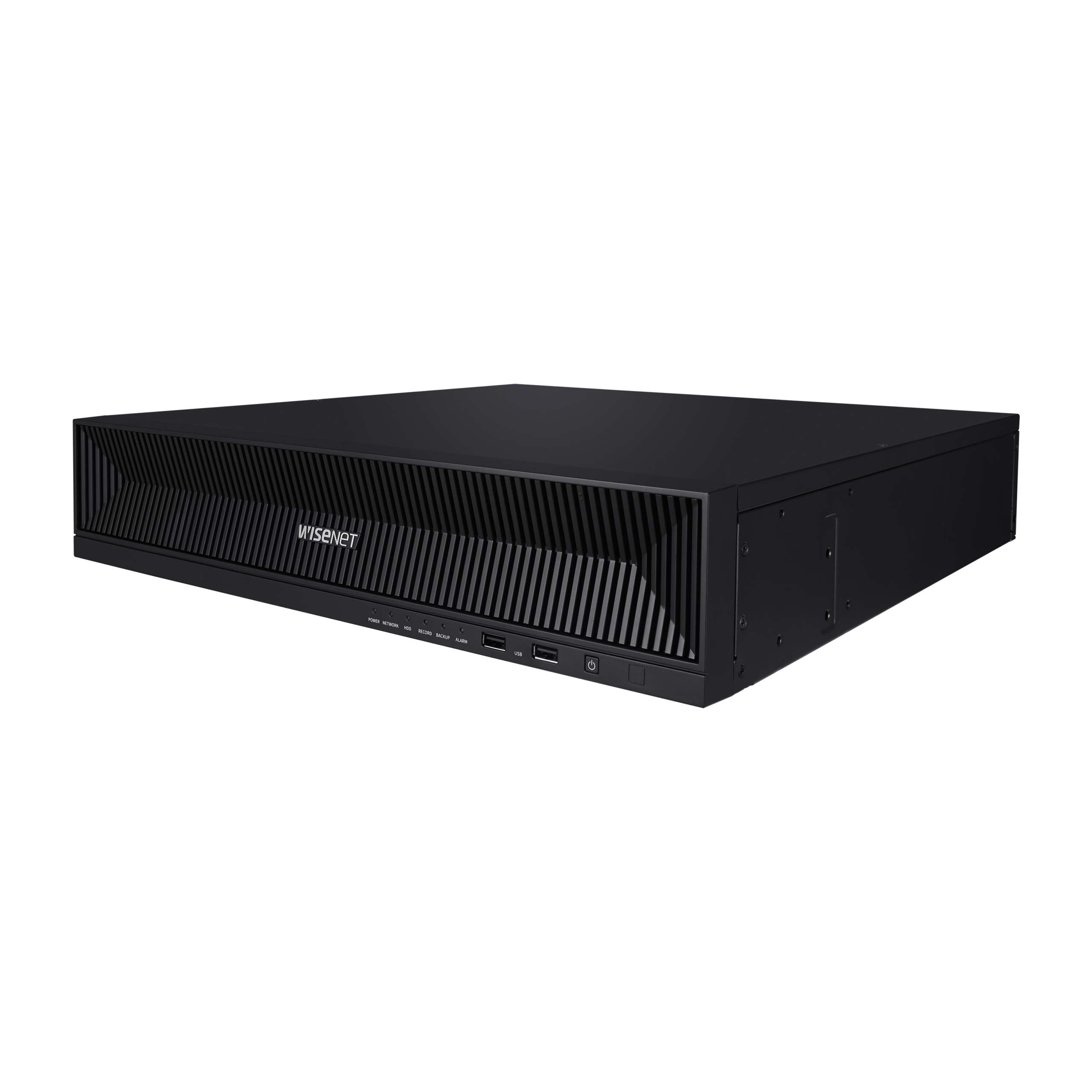

Hanwha XRN-1620B2 16CH 4K 140Mbps H.265 NVR

Brand:

AED 2,728.14

Key Features

• Up to 16CH 32MP supported
• Max. 140Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
– New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported
• Bookmark management (Up to 100 set)
• SATA 8ea (Up to 80TB)

Shipping calculated at checkout.
or

Specification

Display & Network
Device Type: Network Video Recorder (NVR)
Max Camera Inputs: 16 Channels
Supported Resolution: 32MP ~ CIF
Protocols: SUNAPI, ONVIF

Local Display & Decoding
Display Output: FHD (HDMI + VGA Dual), UHD (HDMI Single)
Multi-Screen (Local): Dynamic Layout, Virtual Channel View
Clone Mode: Up to 16 Division
Expand Mode: Up to 9 Division
Web Display: 1 / 2H / 2V / 3V / 4 / 6 / 8 / 9

Decoding Performance
FHD Clone Mode: 32M@15fps, 12M@30fps, 8.3M@50fps, 1080p@240fps
UHD Single Mode: 32M@15fps, 12M@30fps, 8.3M@50fps
FHD Expand Mode: 32M@12fps, 12M@25fps, 8.3M@30fps
High Channel Display: Up to 25fps when over 10CH

System & Recording
Operating System: Embedded Linux
Compression: H.265 / H.264 / MJPEG
Recording Bandwidth: Max. 140 Mbps
Recording Modes: Normal, Dual Stream, Schedule, Event, Bookmark

Events & Actions
Event Triggers: Alarm, Video Loss, Analytics, Defocus, Audio
Event Actions: Email, Push, PTZ Preset, Alarm Out, FTP, Shutdown

Search & Playback
Playback Bandwidth: Max. 32 Mbps
Simultaneous Playback: Up to 64CH (Local 16CH)
Search Modes: Date/Time, Event, Text, Smart Search
Playback Control: Fast/Slow, Forward/Backward, Frame Step

Storage & Backup
HDD Slots: 8 × SATA
Max Storage: 10TB per HDD (Up to 80TB)
Backup: BU / EXE / AVI (Local), JPG / AVI (Network)

Network & Security
Network Protocols: IPv4/IPv6, TCP/IP, RTSP, HTTPS, SNMP, ONVIF
Transmission Bandwidth: Max. 140 Mbps
Security: IP Filtering, 802.1X, Encryption, Signed Firmware

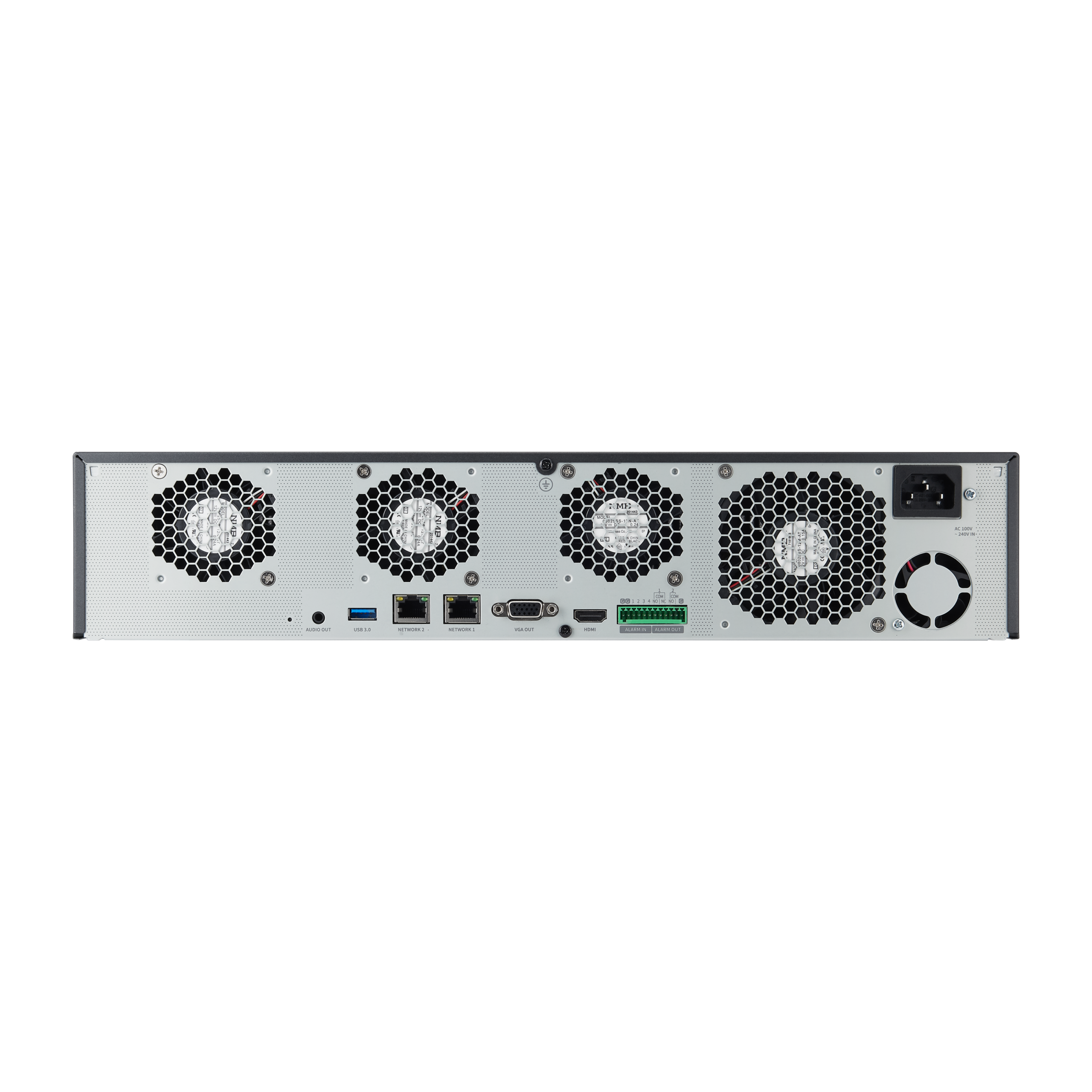

Interface
HDMI: 1 × 3840×2160 @ 30Hz
VGA: 1920×1080 @ 30Hz
Ethernet: 2 × RJ-45 (1Gbps)
USB: 3 Ports (2× USB 2.0, 1× USB 3.0)

Electrical & Environmental
Power Input: 100 ~ 240 VAC, 50/60Hz
Power Consumption: 130 W
Operating Temperature: 0°C ~ +40°C
Operating Humidity: 20% ~ 85% RH

Mechanical & AI
Color / Material: Black / Metal
Dimensions: 440 × 89.8 × 428.4 mm
Weight: 5.71 kg
AI Analysis: Object Attribute Search (Hanwha AI Cameras)

  • Up to 16 channels, Supports up to 32 megapixel camera resolution
  • 140Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor HDMI/VGA video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 8 internal HDDs (80TB)
  • ARB & failover (N+1), dynamic event, Wisenet AI metadata search support

8K NVR (Intel based), No HDD, 16 channels, H265,H264, MJPEG, 8 fixed internal SATA HDDs (10TB max per HDD), ARB (Automatic Recovery Backup), 140 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, max. resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code
