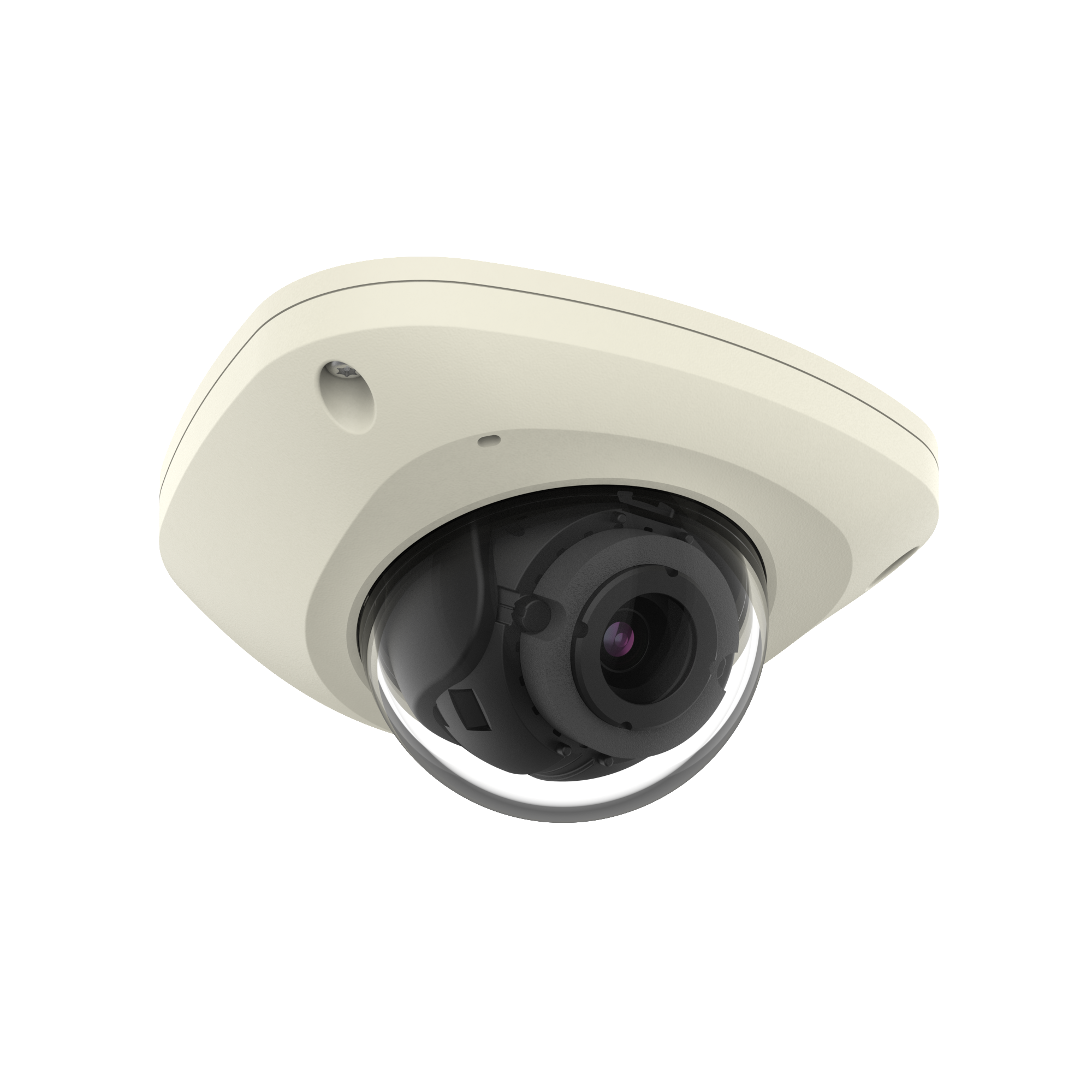

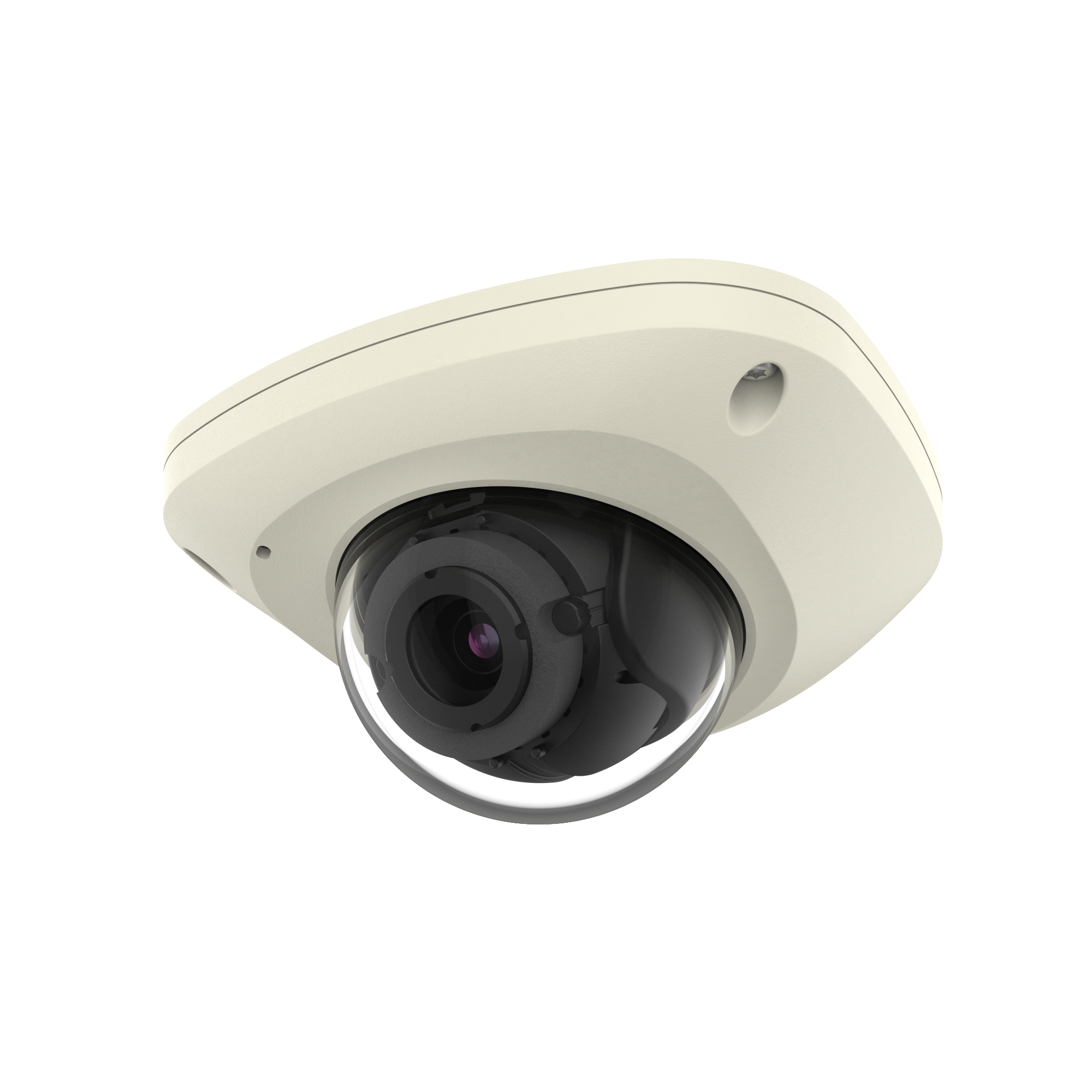

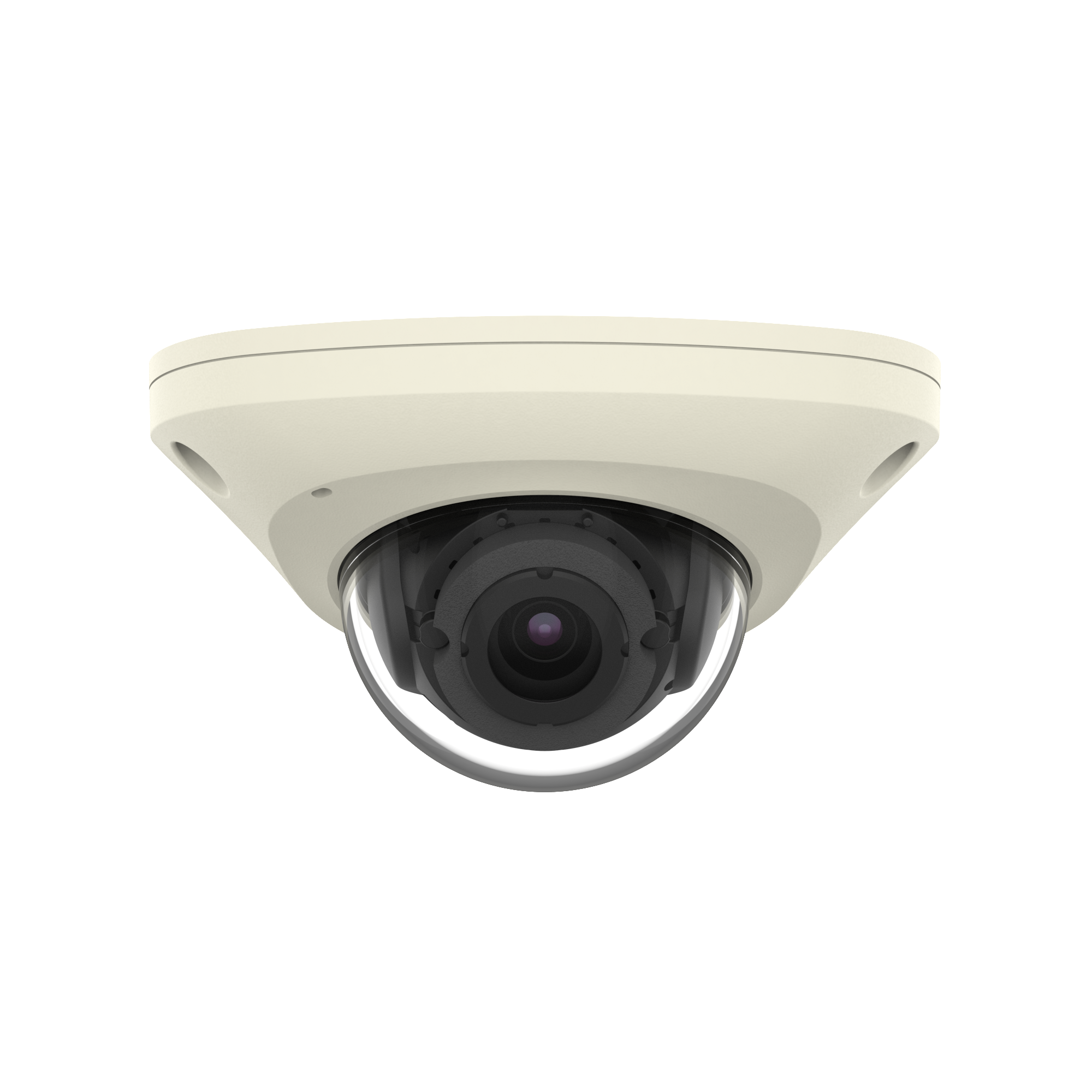

Hanwha XNV-6012 2MP Mobile Vandal Dome Network Camera
1,044.49
Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• Max. 60fps@all resolutions (H.265 / H.264)
• 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
• Built-in 2.4mm fixed lens
• H.265, H.264, MJPEG codec supported
• Multiple streaming
• Day & Night, WDR (150dB)
• SD/SDHC/SDXC memory slot (Max. 256GB)
• IP66, IK10, NEMA4X
• Hallway view, PoE, LDC support
Shipping calculated at checkout.
Specification
Video
Imaging Device: 1/2.8″ CMOS
Resolution: 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max Frame Rate: H.265/H.264 up to 60fps / 50fps
MJPEG: Up to 30fps
Min Illumination: Color 0.04 Lux, B/W 0.04 Lux
Video Output: USB (Micro USB Type-B)
Lens
Focal Length: 2.4mm
Max Aperture: F2.0
Field of View: H 135.4°, V 71.2°, D 161.6°
Lens Type: Fixed Iris
Pan / Tilt / Rotate
Pan: -5° ~ +5°
Tilt: 0° ~ 67°
Rotate: -90° ~ +90°
Image Enhancement
Day & Night: Auto (Electrical)
Backlight Compensation: BLC / HLC / WDR / SSDR
Wide Dynamic Range: 150 dB
Noise Reduction: SSNR V
Image Stabilization: Digital Image Stabilization
Defog: Supported
Detection & Privacy
Motion Detection: 8 Polygonal Zones
Privacy Masking: 32 Polygonal Zones
Mask Colors: Gray, Green, Red, Blue, Black, White, Mosaic
Camera Controls
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
Shutter Speed: 2 ~ 1/12,000 sec (Anti-flicker)
Video Rotation: Flip / Mirror / Hallway View (90° / 270°)
LDC: Supported
Alarm & Events
Alarm Triggers: Analytics, Network Disconnect
Alarm Events: Image upload (E-mail / FTP), Notification (E-mail), SD/NAS Recording
Audio
Audio Input: Selectable (Mic In / Line In), Built-in Mic
Audio Output: Line Out
Analytics
Analytics Events: Motion, Tampering, Defocus, Fog, Face Detection, Intrusion, Enter/Exit, Line Crossing, Digital Auto Tracking
Network
Ethernet: RJ-45 (10/100BASE-T)
Video Compression: H.265 / H.264 (Main/Baseline/High), MJPEG
Audio Compression: G.711, G.726, AAC-LC
Smart Codec: Manual, WiseStream II
Streaming: Up to 20 Unicast Users, Multicast Supported
Multiple Streaming: Up to 10 Profiles
Protocols: IPv4/IPv6, RTSP, HTTPS, SNMP, QoS, SRTP, ONVIF
API & Platform
ONVIF: Profile S / G / T
API: SUNAPI (HTTP API)
Platform: Hanwha Vision Open Platform
Features
- Max. 2Megapixel (1920 x 1080) resolution
- Max. 60fps@all resolutions (H.265 / H.264)
- 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
- Built-in 2.4mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night, WDR (150dB), Hallway view, LDC support
- Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Digital auto tracking, Sound classification, Motion detection, Handover,
- SD/SDHC/SDCX memory slot (Max. 256GB)
- Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
- Ingress Protection IP66
- Vibration Resistance EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007, NEMA 4X
- Vandal Resistance IK10, NEMA4X
- Input Voltage / Current PoE (IEEE802.3af, Class3)
- Power Consumption Max. 6.5W
- Dimensions (WxHxD) 98.9 x 52.0 x 100.0mm (3.89″ x 2.05″ x 3.94″)
- Weight 295g (0.65 lb)
