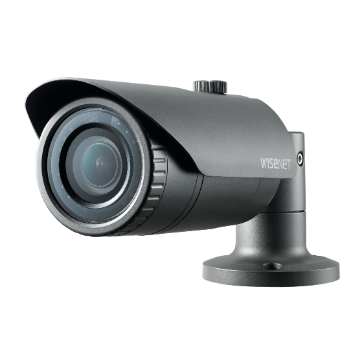

Hanwha Techwin QNO-6072R 2MP IR Bullet Camera, 3.2~10mm fixed lens
554.98
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03Lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90˚/270˚), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 30m
• IP66, IK10, PoE/12VDC
Shipping calculated at checkout.
Specification
Video
Imaging Device: 1/2.8″ 2MP CMOS
Effective Pixels: 1920 (H) × 1080 (V)
Minimum Illumination: Color 0.03 Lux (F1.6, 1/30s), B/W 0 Lux (IR LED On)
Video Output: CVBS 1.0 Vp-p / 75Ω (720×480 NTSC, 720×576 PAL)
Lens
Focal Length: 3.2–10 mm (3.1×) Manual Varifocal
Aperture: F1.6 (Wide) ~ F2.9 (Tele)
Field of View: H 109.0°–33.2°, V 57.4°–18.7°, D 132.0°–38.0°
Focus Control: Manual
Lens Type: DC Auto Iris
Operational Features
IR Viewable Distance: Up to 30 m (98.4 ft)
Day & Night: Auto (ICR)
Wide Dynamic Range: 120 dB
Noise Reduction: SSNR
Backlight Compensation: BLC / WDR / SSDR
Video Rotation: Flip, Mirror, Hallway View (90° / 270°)
Analytics & Detection
Motion Detection: 4 Polygonal Zones
Privacy Masking: 6 Rectangular Zones
Analytics: Defocus, Directional, Enter/Exit, Tampering, Virtual Line
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
Alarm & Audio
Alarm I/O: 1 Input / 1 Output
Alarm Triggers: Analytics, Network Disconnect, Alarm Input
Alarm Actions: FTP & Email Upload, Email Notification, Alarm Output
Audio Input: Selectable Mic In / Line In
Audio Input Specs: 2.5 VDC (4 mA), 2 kΩ Impedance
Network & Compression
Ethernet: RJ-45 (10/100BASE-T)
Video Compression: H.265 / H.264 (Main/High), MJPEG
Supported Resolutions: 1080p, 960p, 720p, 800×600, 720×576, 720×480, 640×480, 640×360
Max Frame Rate: H.265/H.264 up to 30fps (60Hz), MJPEG up to 15fps
Description
Hanwha Techwin QNO-6072R Wisenet “Samsung” 2MP Network IR Bullet Camera.
Features of the Hanwha Techwin QNO-6072R 2MP IR Bullet Camera, 3.2~10mm fixed lens:
- Max. 2megapixel (1920 x 1080) resolution
- 0.03Lux (Color), 0Lux (B/W, IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Max. 30fps@2M all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90˚/270˚), LDC support
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IR viewable length 30m
- IP66, IK10, PoE/12VDC
