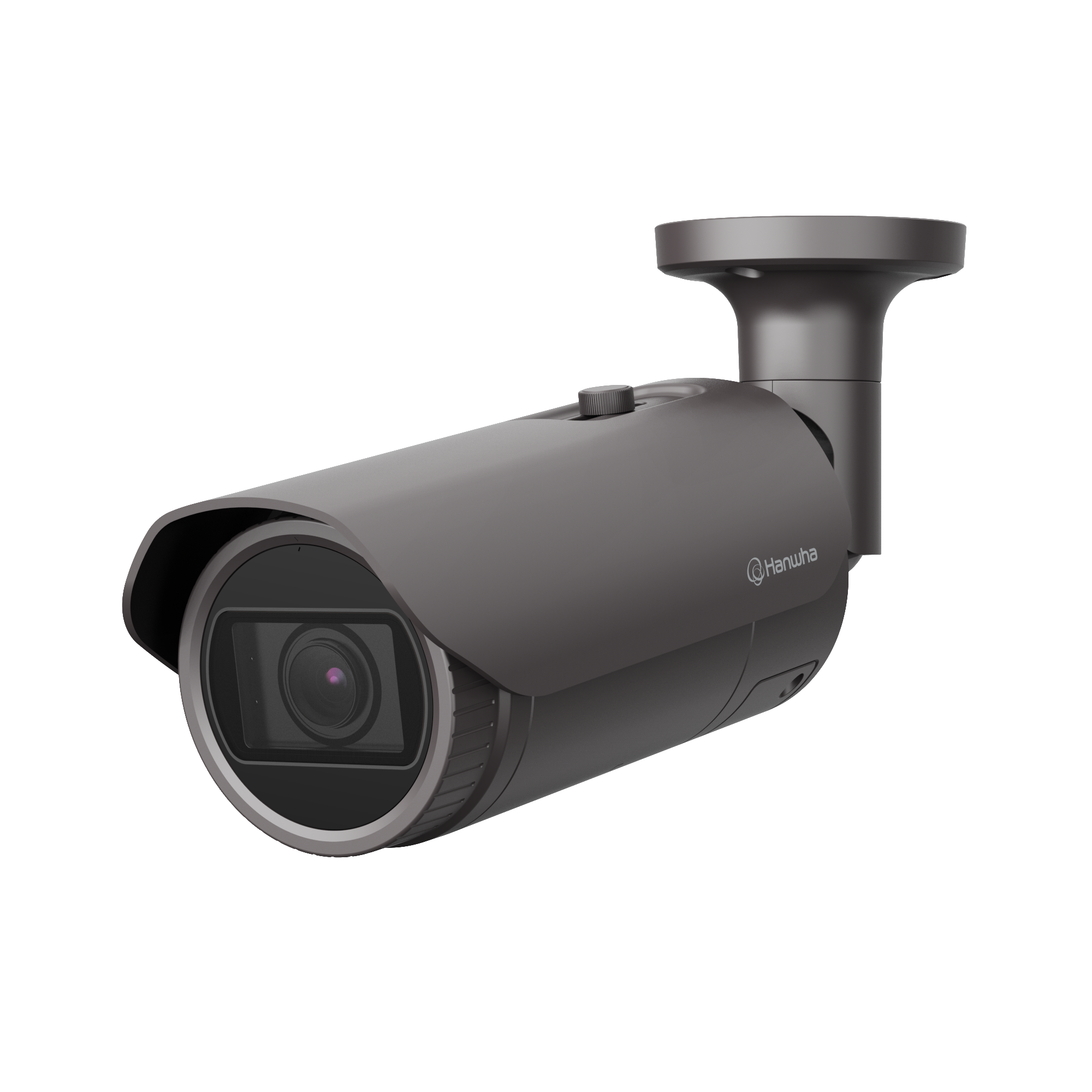

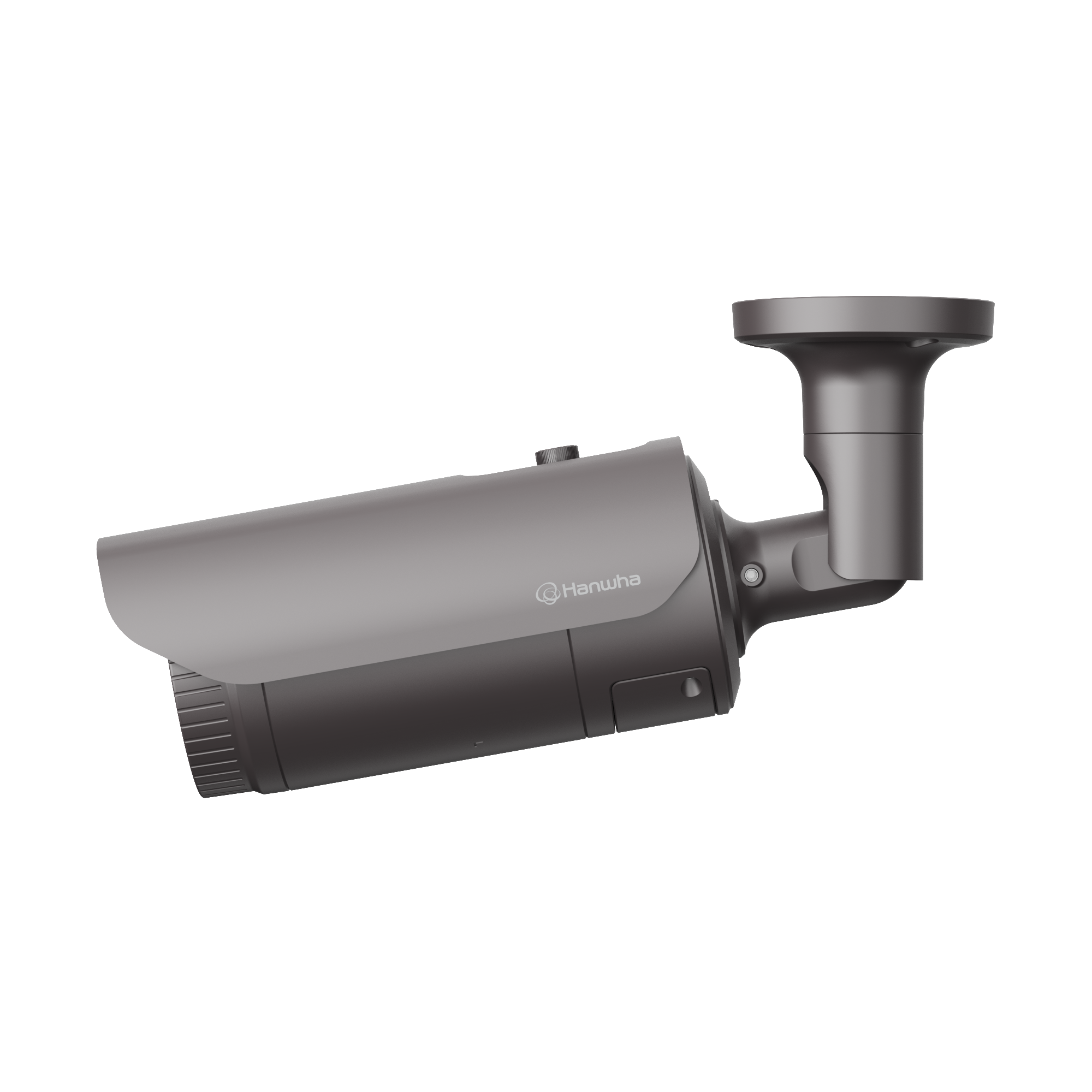

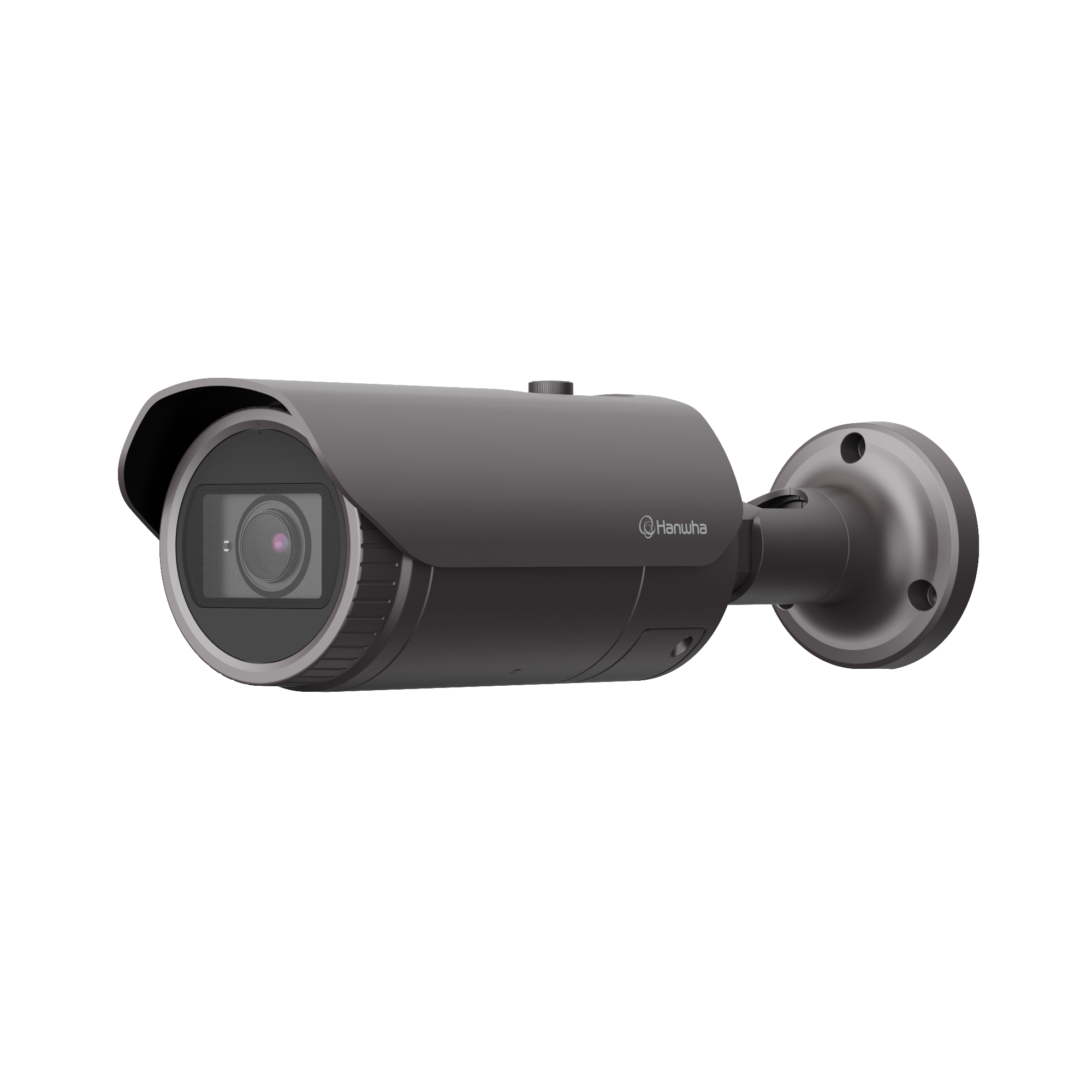

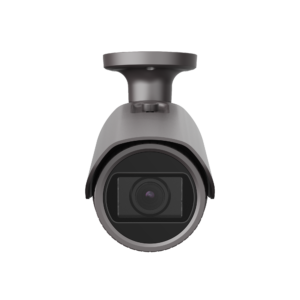

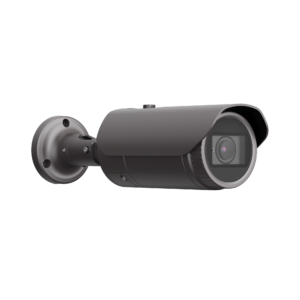

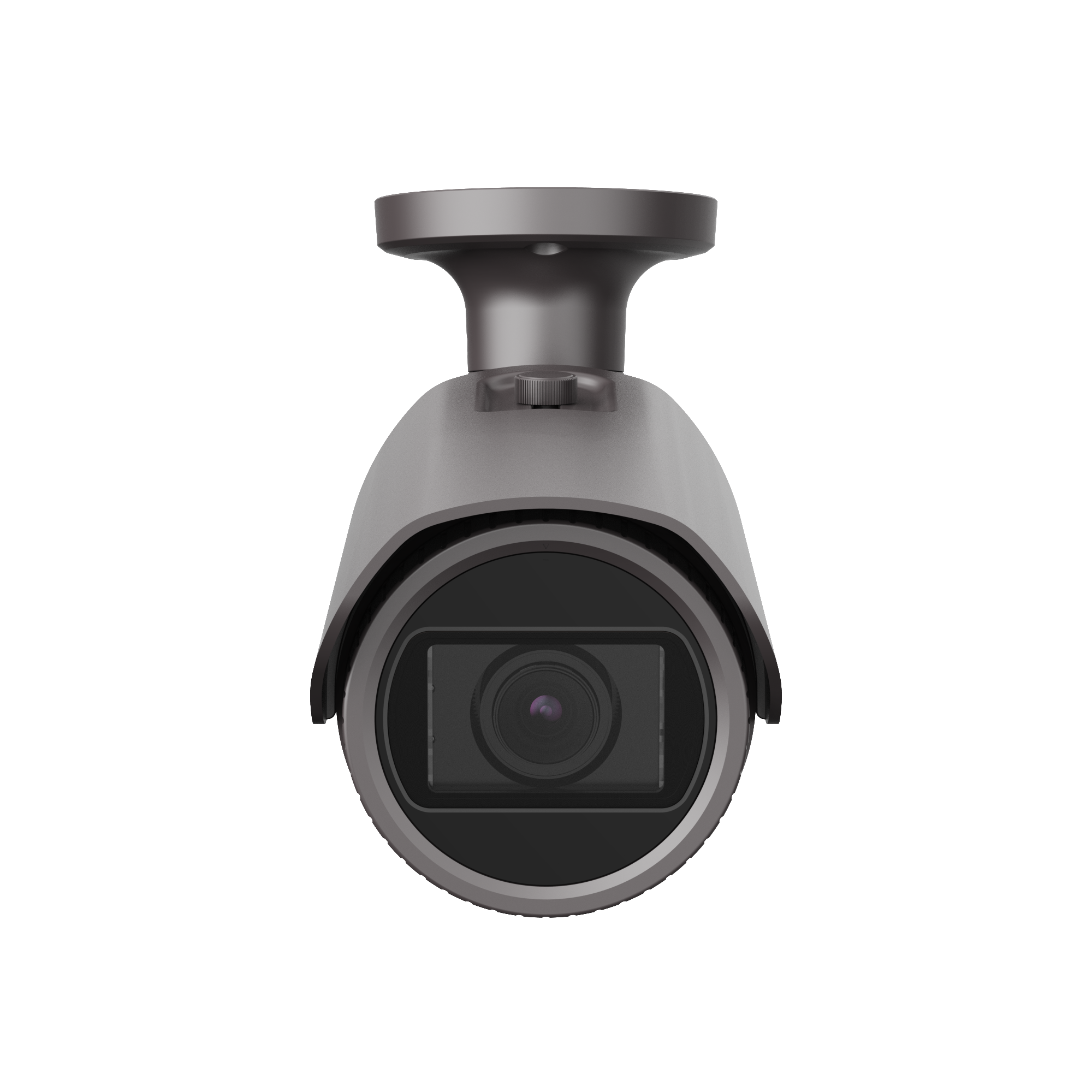

Hanwha QNO-8080R 5MP Motorized Varifocal IR Bullet Network Camera

Brand:

AED 924.45

Key Features

• Max. 5Megapixel (2592 x 1944) resolution
• 3.2~10mm(3.1x) motorized varifocal lens
• 0.15Lux (Color), 0Lux (B/W, IR LED on)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day&Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• IR Viewable length 30m (98.42ft)
• IP66, IK10, PoE

Shipping calculated at checkout.
or

Specification

Video & Imaging
Imaging Device: 1/2.8″ CMOS
Max Resolution: 2592 × 1944 (5MP)
Supported Resolutions: 2592×1944 to 320×240
Frame Rate: H.265/H.264 up to 30fps, MJPEG up to 15fps
Min Illumination: Color 0.15 Lux / B&W 0.015 Lux
Video Output: CVBS (Installation)

Lens
Focal Length: 3.2–10 mm
Optical Zoom: 3.1×
Aperture: F1.6 (Wide) ~ F2.9 (Tele)
Field of View: H: 101°–31°, V: 73°–23°, D: 134°–38°
Focus Control: Simple Focus
Lens Type: DC Auto Iris (IR Corrected)

Pan / Tilt / Rotate
Pan: 0° ~ 360°
Tilt: 0° ~ 100°
Rotate: 0° ~ 360°

Image Enhancement
Day & Night: Auto (ICR)
Wide Dynamic Range: 120 dB
Backlight Compensation: BLC / WDR / SSDR
Noise Reduction: SSNR
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
Video Rotation: Flip / Mirror / Hallway (90° / 270°)

Detection & Analytics
Motion Detection: 4 Zones (8-point Polygon)
Privacy Masking: 6 Zones (Rectangular)
Analytics: Defocus, Motion, Tampering, Virtual Area, Virtual Line

Alarm & Events
Alarm I/O: 1 Input / 1 Output
Alarm Triggers: Analytics, Network Disconnect, Alarm Input
Alarm Actions: Email, FTP Upload, SD/NAS Recording, PTZ Preset

IR & Night Vision
IR Type: IR LED
IR Distance: Up to 30 m (98.4 ft)
IR Wavelength: 850 nm

Network & Compression
Ethernet: RJ-45 (10/100BASE-T)
Video Compression: H.265 / H.264 / MJPEG
Smart Codec: WiseStream II
Bitrate Control: CBR / VBR
Streaming: Unicast (Up to 6 Users), Multicast
Profiles: Up to 3 Streams

Protocols & Integration
Network Protocols: IPv4/IPv6, RTSP, HTTPS, SSL/TLS, SNMP v1/v2c/v3, DHCP, FTP, SMTP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
API & Integration: ONVIF S/G/T, SUNAPI, Hanwha Vision Open Platform
Cloud Connection: Optional (Gateway Required)

Features

  • 5 Megapixel resolution
  • 3.2~10mm (3.1x) motorized varifocal lens
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 25m, IP66, IK10
  • Hallway view support
  • Analog video out & simple focus for easy installation
  • LDC support (Lens Distortion Correction)

Overview

The QNO-8080R from Hanwha’s Q Series affordable network camera line is a 5 Megapixel bullet network camera featuring WiseStream II, Hanwha’s compression technology, triple codec H.265/H.264/MJPEG, 3.2~10mm motorized varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, and SD card slot (SD/SDHC/SDXC up to 128GB). The simple focus feature provides quick and easy focus with the press of a button.
