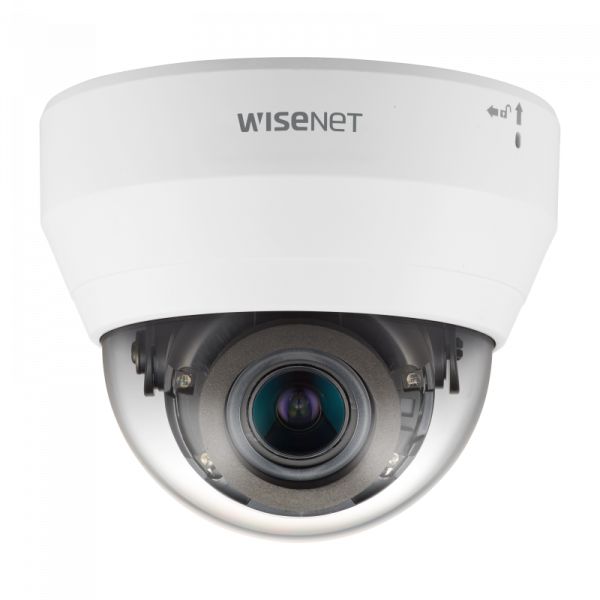

Hanwha QND-6082R 2MP Network IR Dome Camera with Motorized Varifocal Lens
578.37
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 20m, PoE/12VDC
Shipping calculated at checkout.
Specification
Video & Imaging
Imaging Device: 1/2.8″ CMOS
Max Resolution: 1920 × 1080 (Full HD)
Supported Resolutions: 1920×1080 to 640×360
Frame Rate: H.265/H.264 up to 30fps, MJPEG up to 15fps
Min Illumination: Color 0.03 Lux / B&W 0.003 Lux
Video Output: CVBS (Installation)
Lens
Focal Length: 3.2–10 mm
Optical Zoom: 3.1×
Aperture: F1.6 (Wide) ~ F2.9 (Tele)
Field of View: H: 109°–33°, V: 58°–18°, D: 132°–38°
Min Object Distance: 0.5 m (1.64 ft)
Focus Control: Simple Focus
Lens Type: DC Auto Iris
Pan / Tilt / Rotate
Pan: 0° ~ 350°
Tilt: 0° ~ 67°
Rotate: 0° ~ 355°
Image Enhancement
Day & Night: Auto (ICR)
WDR: 120 dB
Backlight: BLC / WDR / SSDR
Noise Reduction: SSNR
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
Video Rotation: Flip / Mirror / Hallway (90° / 270°)
Detection & Analytics
Motion Detection: 4 Zones (8-point Polygon)
Privacy Masking: 6 Zones (Rectangular)
Analytics: Defocus, Motion, Tampering, Virtual Area, Virtual Line
Alarm & Audio
Alarm I/O: 1 Input / 1 Output
Alarm Triggers: Analytics, Network Disconnect, Alarm Input
Alarm Actions: Email, FTP Upload, SD/NAS Recording, PTZ Preset
Audio Input: Built-in Microphone
IR & Night Vision
IR Type: IR LED
IR Distance: Up to 20 m (65.6 ft)
IR Wavelength: 850 nm
Network & Compression
Ethernet: RJ-45 (10/100BASE-T)
Video Compression: H.265 / H.264 / MJPEG
Audio Compression: G.711 / G.726
Streaming: Unicast (Up to 6 Users), Multicast
Smart Codec: WiseStream II
Bitrate Control: CBR / VBR
Protocols
Supported Protocols: IPv4/IPv6, RTSP, HTTPS, SSL/TLS, SNMP v1/v2c/v3, DHCP, FTP, SMTP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- 2 Megapixel (1920 x 1080) resolution
- 3.2 ~ 10mm (3.1x) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m
- Hallway view support
- Analog video out & simple focus for easy installation
- LDC support (Lens Distortion Correction)
- Built-in microphone
- Genetec Stratocast compatible
