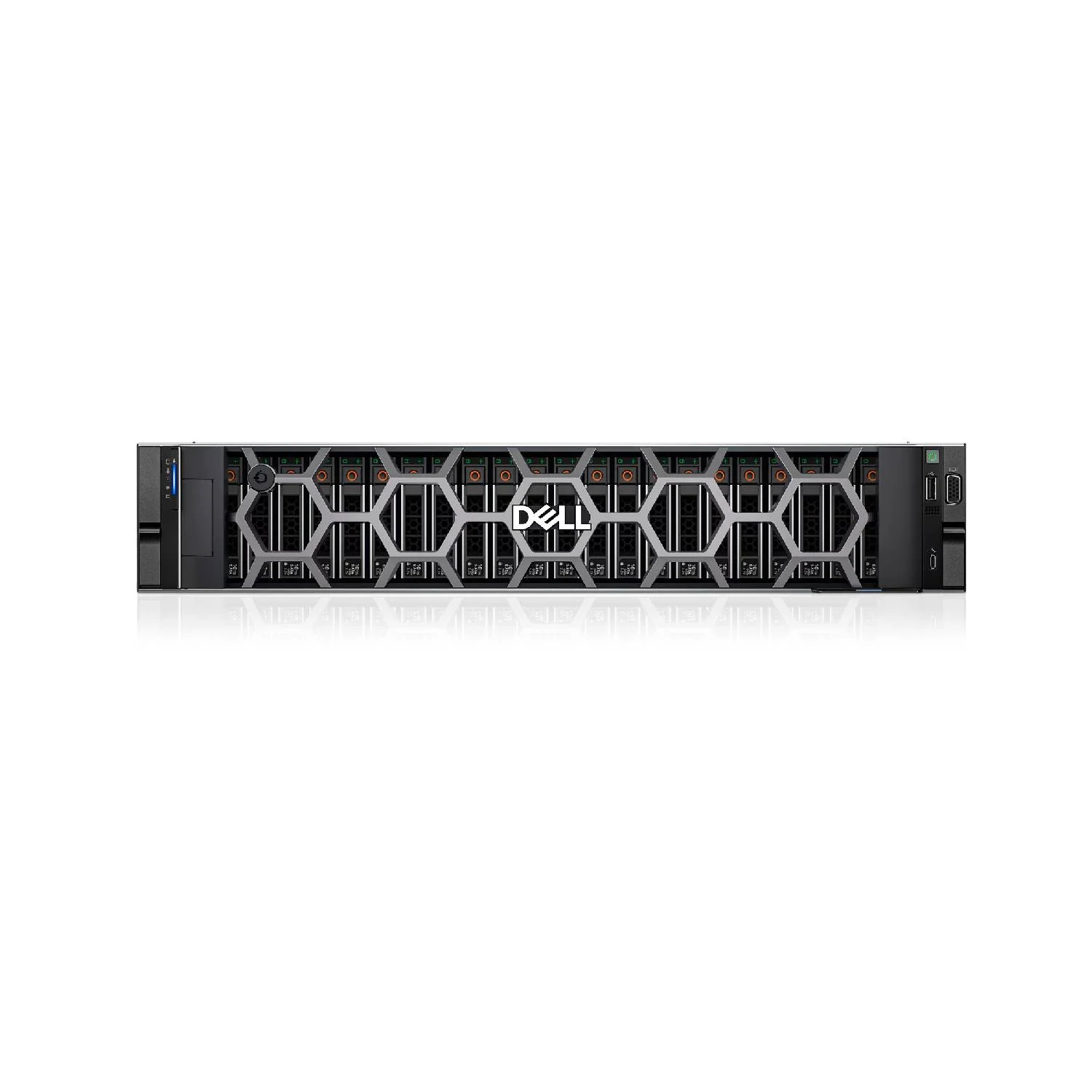

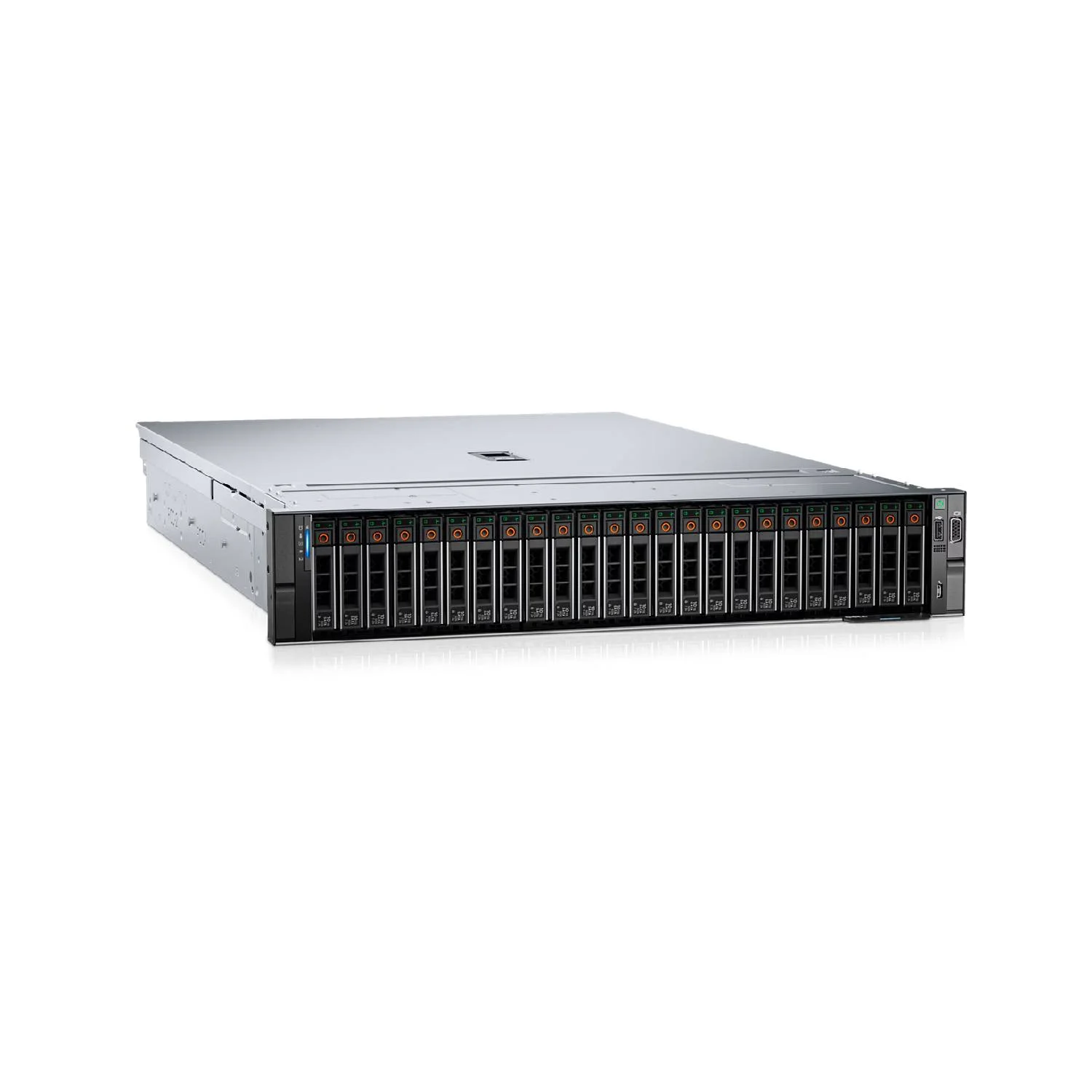

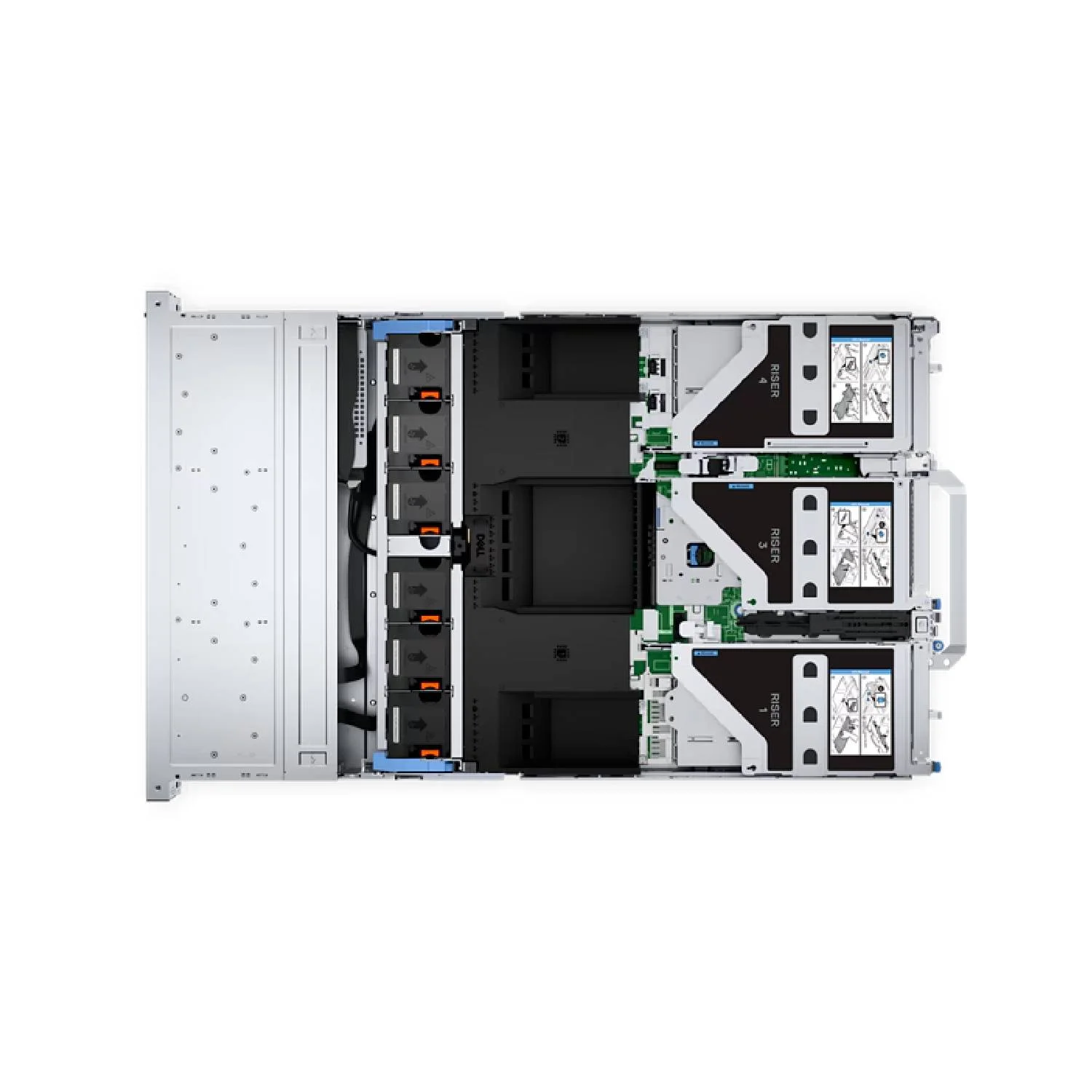

Dell PowerEdge R760xs Rack Server | Intel Xeon Silver 4410Y | 16 GB | 1 x 480GB SSD | 700 W | 3 Year
12,186.00
-
- Intel Xeon Silver 4310 (2.1GHz /3.3GHz, 18MB Cache, 12Core/24 Threads) 120W
- 16GB (1*16GB) RDIMM, 3200MT/s, Dual Rank
- 1 x 480GB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot-plug AG Drive, 1 DWPD
- (1+1), 700W Titanium
- Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0
- PERC H755 SAS Front
- 2U
- 3 Year Warranty
Specification
Dell PowerEdge R760xs Rack Server, Intel Xeon Silver 4410Y, 16 GB, 1 x 480GB, 700 W, 3 Year
Processor: Intel Xeon Silver 4410Y (2.0 GHz, up to 3.9 GHz w/Turbo Boost, 30 MB cache, 12 core/24 Threads) 150W
Memory: 16GB (1*16GB) RDIMM, 4800MT, Dual Rank (16 DIMM Max)
Internal HDD: 1 x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
Storage controller: PERC H755 SAS Front Controller
Optical Drive: No Internal Optical Drive
Power supply: Dual, Hot-Plug, Power Supply, Redundant (1+1), 700W MM HLAC Titanium (200-240V ONLY, not for 100-120V outlet)
Network interfaces: Broadcom 5720 Dual Port 1Gb On-Board LOM
Broadcom 57414 Dual Port 10/25 GbE SFP28, OCP NIC 3.0
2 x Dell EMC PowerEdge SFP+ SR Opt ic 10GbE 850nm
Systems Management: iDRAC9 Enterprise 16G
2U Rack – Ready Rails Sliding Rails W/out Cable Management Arm
Warranty: 3Year Next Business Day
Tech Specs & Customization
Processor
Up to 2 x 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Operating System
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® vSAN/ESXi®
Canonical® Ubuntu® Server LTSChipset
Intel® C741 Chipset
Accelerators
2 x 75 W SW, LP
Memory
DIMM Speed
Up to 5200 MT/sMemory Type
RDIMMMemory Module Slots
16 DDR5 DIMM slotsMaximum RAM
1.5 TBStorage
Front Bay
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 288 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TBRear Bay
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TBInternal Controllers
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465iExternal Controllers
HBA355eSoftware RAID
S160Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
USBStorage Controllers
Internal Controllers
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355iExternal Controllers
HBA355eSoftware RAID
S160Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
USBSecurity
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZManagement
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless moduleConsoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager pluginMobility
OpenManage MobileTools
Dell Repository Manager Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLIOpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations ManagerPower Supplies
Power Supplies
1800 W Titanium 200—240 VAC or 240 VDC, hot swap redundant
1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 VDC, hot swap redundant
1400 W Titanium 277 VAC or HVDC (HVDC stands for High-Voltage DC, with 336V DC), hot swap redundant
1100 W Titanium 100—240 VAC or 240 VDC, hot swap redundant
1100 W -(48V — 60V) DC, hot swap redundant
800 W Platinum 100—240 VAC or 240 VDC, hot swap redundant
700 W Titanium 200—240 VAC or 240 VDC, hot swap redundant
600 W Platinum 100—240 VAC or 240 VDC, hot swap redundantFans
Standard (STD) fans, High performance SLVR fans or High performance GOLD fans
Up to 6 hot swappable fansPorts
Network Options
2 x 1GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card to be installed in the system.Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

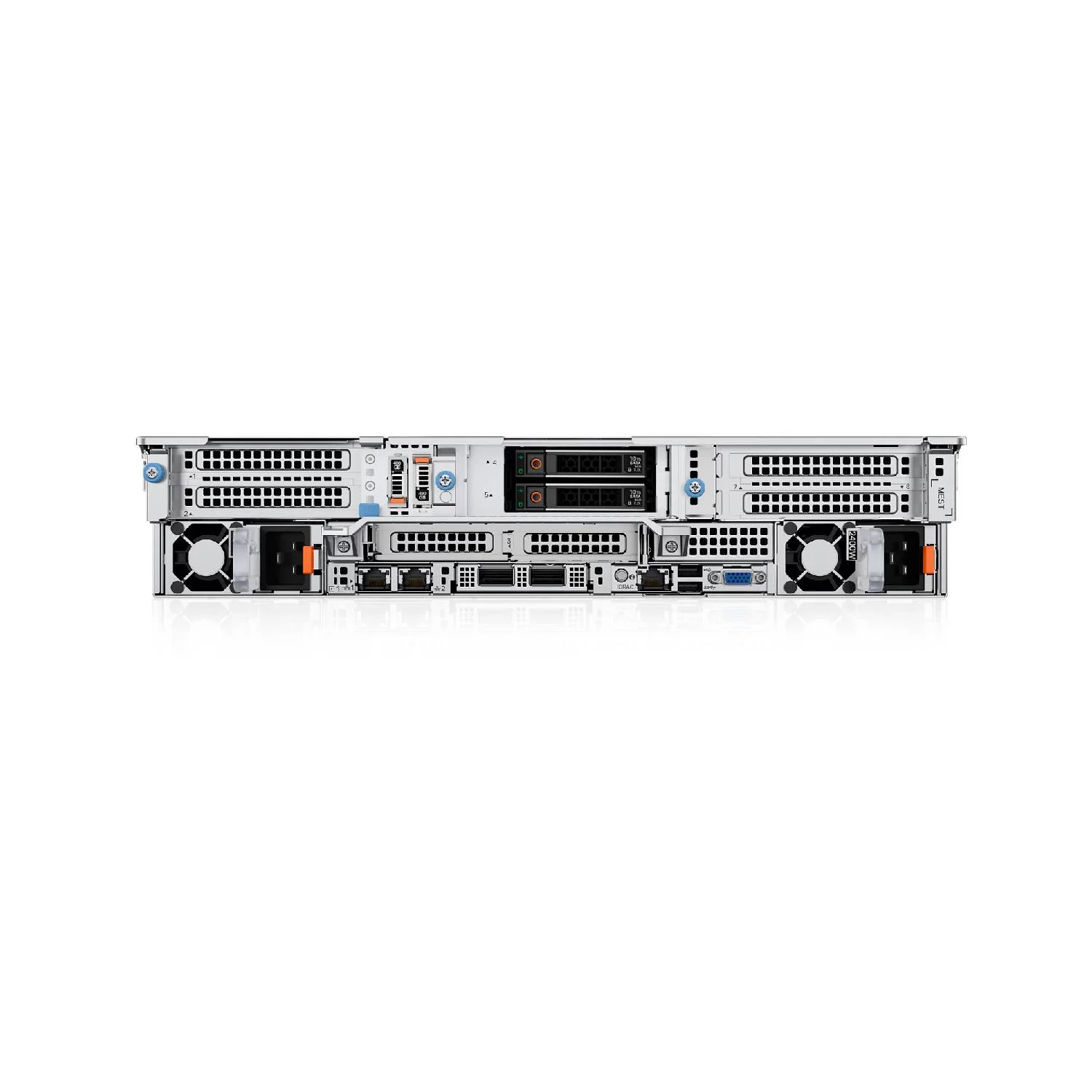

1 x VGARear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGAInternal Ports
1 x USB 3.0 (optional)Slots
PCIe
1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4)
2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5)Video
1 x VGABezel
Optional LCD bezel or security bezel
Form Factor
2U rack server
Dimensions & Weight
Height
86.80 mm (3.41 in.)Width
482 mm (18.97 in)Depth
707.78 mm (27.85 in) – without bezel
721.62 mm (28.4 in) – with bezelWeight
Max 28.6 kg (63.0 lbs.)Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
ReadyRails static rails for 4-post and 2-post racksRecommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Features & Design
PowerEdge R760xs rack server resources
Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.Your innovation engine
The Dell PowerEdge R760xs is thoughtfully crafted to fit in your current infrastructure and deliver the right performance features to support your demanding enterprise applications.Just right
Strike the right balance between performance and flexibility with this air-cooled solution designed for the most popular IT applications.
- Add up to two 5th Generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
- Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
- Improve data throughput and reduce latency with support up to 8 I/O devices
- Up to available 6 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot
- Storage options include up to 12 x 3.5” HDDs/SSDs; or up to 16 x 2.5” HDD/SSDs, plus up to 8 x NVMe drives
Systems management and security solutions
OpenManage systems managementTame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.Intelligent automationIntegrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.Built-in securityStay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.Dell Technologies offers complete end-to-end services
Optimising the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.ConsultingConsulting services give expert guidance to help you grow, optimise and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.SupportGain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.DeploymentProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.EducationEducation Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilise your new technology to its full potential.Regulatory Product Compliance & EnvironmentalDell Technologies is committed to compliance with the laws and regulations in each country into which the company ships our products. Dell products are designed and tested to meet the appropriate worldwide standards for Product Safety, Electromagnetic Compatibility, Ergonomics, and other regulatory compulsory requirements when used for their intended purpose.
In addition, Dell products are developed with design for environment in mind. Our environmental stewardship program drives conservation of product energy consumption, develops methods to reduce or eliminate materials for disposal, prolongs product life span, and provides effective and convenient equipment recovery solutions.
